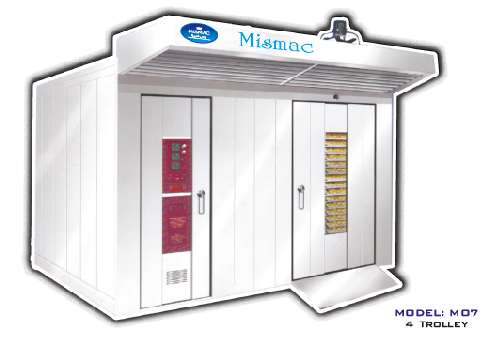

ROTARY RACK OVENS is We Introduce a range of Rotary Rack Ovens suitable for different
manufacturing levels.. These Ovens are equipped with a two way steamer that enables
abundant and homogeneous steam production. Completely built with stainless steel
and thicker materials die used to maintain the absorbed heat and reduce at least
40% of burner ignition and fuel consumption. Easy to operate and ensures uniform
baking. Latest design of heat exchanger has been adapted. You have a option of selecting
the burner according to the fuel that is used i.e., LPG or Diesel.|
Model |
Dimensons : Width X Depth X Height |
Connected Load |
Weight |
Minimum Dimensions to Take in (HxW) |
|
MO- |
1422 x1067 x2236 mm (56"x 42"x 88") |
1.5 Kw III Ph or 1 Ph |
800 Kg. |
2337 mm x 1016 mm (92"x40") |
|
MO- |
1321x1829 x2236 mm (52"x 72"x 88") |
7.5 Kw lit Ph or 1 Ph |
1200 Kg. |
2337 mmx 1118 mm (92"x 44") |
|
MO- |
1778 x1422 x2438 mm (70"x 56"x 96") |
3.0 Kw/ 4.4 HP (475 vAC, 52 Hz) |
1600 Kg. |
2591mm x 863 mm (102" x 34") |
|
MO- |
1981x1626 x2438 mm (78"x 64"x 96") |
3.0 Kw/4.4 HP(47SvAC, 52 Hz) |
1800 Kg. |
2591mm x 914 mm (102"x36") |
|
MO- |
2184 x2174 x2438 mm (86"x 70"x 96") |
3. Kw/ 4.4 HP (475 vAC, 52 Hz) |
2200 Kg. |
2591 mm x 965 mm (102"x38") |
|
MO- |
2997 x2184 x2438 mm (118"x86"x96") |
6.5 Kw/8.6 HP (4/5 vAC, 52 Hz) |
2700 Kg. |
2591 mmx 1321 mm (102"x52") |
|
MO- |
3099 x2286 x2438 mm (122"x90"x96") |
4.5 Kw/ 6.5 HP (475 vAC, 52 Hz) |
3200 Kg. |
2591 mmx 1372 mm (102"x54") |
|
MO- |
3658 x2692 x2438 mm (144"x 106"x96") |
6.5 Kw/8.9 HP (475 vAC, 52 Hz) |
4200 Kg. |
2591 mmx 1473 mm (102"x 58") |
